SUS316L Semi Automatic Ultrasound Tube Filling And Sealing Machine

Name: SUS316L Semi Automatic Ultrasound Tube Filling And Sealing Machine
Brand: AILUSI
Price: 4200 USD

SUS316L Semi Automatic Ultrasound Tube Filling And Sealing Machine Manufactures

Brand Name : AILUSI

Certification : CE

Place of Origin : JIANGSU

MOQ : 1

Price : 4200USD

Payment Terms : D/A, L/C, T/T

Supply Ability : 10

Delivery Time : 35

Automatic grade : Semi-Automatic

Type : Filling Machine,Sealing Machine

Application : Chemical

After-sales service provided : Video technical support

Packaging material : Plastic,Metal,plastic tube filling and sealing machine

Driven type : Electric,Pneumatic

Capacity : 20-35 tubes/min,120-150 tube/min

Material : SUS316L/SUS304 stainless steel

Name : Ultrasonic plastic soft tube tail sealing machine

Function : filling and sealing

Product name : Semi Auto ultrasonic Cosmetic Tube Filling Sealing Machine

Contact Now

SUS316L Ultrasound Toothpaste Soft Tube Filling and Sealing Machine

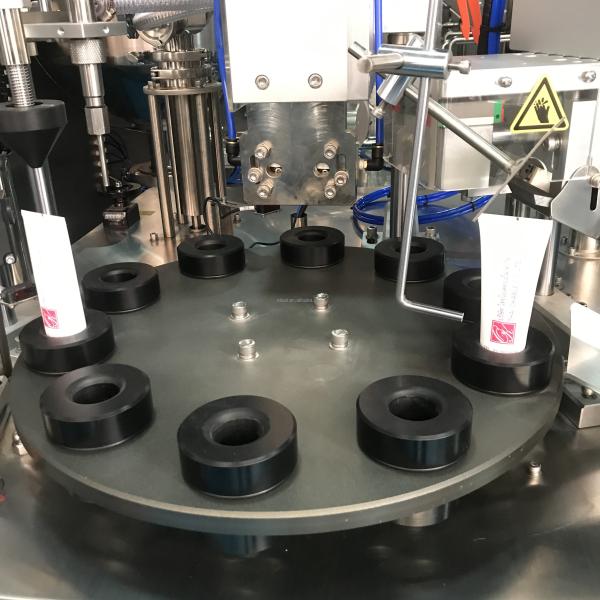

This machine is designed for plastic tube and multiple tube filling and sealing in cosmetic, pharmacy, foodstuff, adhesives etc industries. Its operating principle is to put the pipes which is in the feeder hopper into the first service position filling model individually, to invert with rotating disk, to test nomenclature plate in pipe when inverting to the second , to fill with nitrogen gas into pipe in the third, to fill with desired substance in the fourth, then to fix the heating, folding, jamming, number printing, cooling, slivers trimming etc service position, to export the finished products when inverting to the last service position so the twelfth. Every pipe should take such series process to filling, sealing to completion.

SUS316L Semi Automatic Ultrasound Tube Filling And Sealing Machine

Lead Time:20 DAYS
Product Orgin:China
Shipping Port:Guangzhou Port
Price:$12000/Set
MOQ:1
goods stock:50

Product Detail

Fetures:

1, Tube Filling And Sealing Machine is widely used in pharmaceutical, cosmetic and other industries, applicable to all types of hose potting Cream, lotion, oil and the like.

2, Equipment using ten-station design. Automatic tube of color, filling, heat sealing, pressure tooth profile, the pipe.

3, Control part of filling and sealing machine adopts PLC control system, make the machine work more precise and stable. All material contact parts are made of 316 stainless steel, acid, corrosion. Pipe clamp connections with fast, easy handling, fast and lightweight. Valve using the rotary valve, very easy to clean, no filth place.

4, There are four sealing options. Translocation using precision cam indexing mechanism, accurate positioning stable. Translocation motor adopts frequency control, the user can adjust the running speed.

5, Optional tube box, sealed hoppers, heated hopper, automatic feeding, automatic recycling waste function, shields and other devices. Full compliance with GMP requirements.

Product Details:

Item	Description(FULL AUTO)	Description(SEMI AUTO)	Remark
Tube material	Plastic tube, Multiple tube	Plastic tube, Multiple tube
Tube diameter	φ13-φ50	Φ16-Φ50mm
Tube length	50-250	50-250	customizable
Filling volume	10-300ml/pcs	10-250ml	adjustable
Product capacity(pcs/h)	1800-4000	600-1500
Working pressure	0.55-0.65Mpa	0.5---0.6MPa
Motor power	2kw (380V/220V 50Hz)	220V/50Hz or 380V/60Hz
Heat sealing power	3kw	3kw
Working Position	12	8	One size one mold
dimension	L2620×W1236×H1980	1100×790×1500mm
weight	1100KG	400kg

Our Servers:

We provide Turn-key project service to customer.

1. Factory Layout design;

2. Factory Decoration based on GMP standard;

3. Formula of products;

4. Raw material etc;

5. Machine design, whole production line from A to Z;

6. Shipping service, FOB, CFR, CIF etc;

7. Installation service. Training service, Maintenance service.

SUS316L Semi Automatic Ultrasound Tube Filling And Sealing Machine
