Advantage
1.The machine has triple blender,hydraulic lift cover,high-speed homogenizer(speed is 0-3600r/min,frequency speed regulation)and low-speed scraper blender(speed is 0-63r/min,frequency speed regulation).Fast-cutting vortex emulsification blender is used in the homogeneity part,which can scrape in a low speed and automatically blend and snuggle up to the bottom and wall of boiler.
2.The machine draws powder material by the way of vacuum in order to prevent the powder flying.The whole working procedure is operated the condition of vacuum in order to prevent the material coming int being bubble after high-speed blending and reach the request of sanitation and asepsis.The material is made completely according to the GMP request.
3.The mirror polishing is 400mu and fully adapt to GMP requirements;
4.The pot is made of three layers stainless steel,outer layer and jacket is made of sus304,and inner layer is made of sus316L.
Use
it is suitable for production of ointment and cream products in cosmetic and pharmaceutical plants.The emulsifying effect is more prominent for materials of high base viscosity and high solid content.
Machine Application

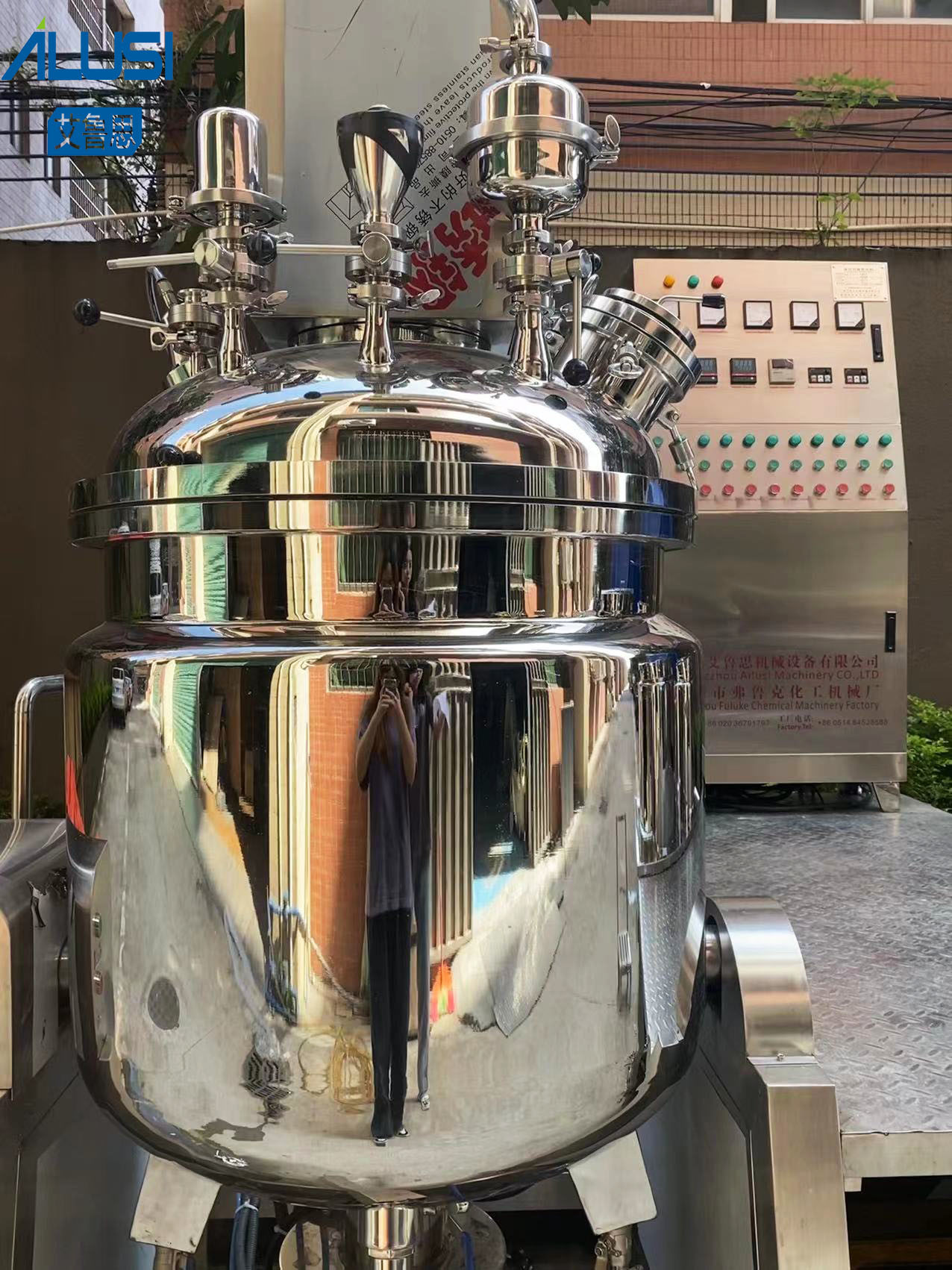

This 200L Vacuum Homogenizer Mixer is mainly applied in such industries as below
1.Daily Chemical &Cosmetics Industry: Such as baby cream,face cream,shaving cream, cream shampoo, toothpaste, cold cream,sunscreen cream
face cleanser. moisture creamdetergentshampoo etc.:
2.Food Industry: Such as sauce.cheesechocolate. cake gel.tomato paste etc:
3.Pharmacy Industry: Such as syrupemulsionemulsifierointment etc.:
4.Chemical Industry: For chemicals mixing,heatingemulsifying,homgenizing etc.
| capacity (L) | Agitator power (kW) | Speed (rpm) | Homogenizer power (kW) | Speed (rpm) | Oil/Water tank (L) | Agitator power (kW) | Speed (rpm) | Hydraulic (KW) |
| 50 | 1.5 | 0~75 | 2 | 0~3600 | 20/45 | 0.37/0.37 | 0~1440 | 0.75kw |
| 100 | 2.2 | 0~75 | 3 | 0~3600 | 40/90 | 0.55/0.55 | 0~1440 | 0.75kw |
| 200 | 3 | 0~75 | 5.5 | 0~3600 | 80/180 | 0.75/0.75 | 0~1440 | 1.1kw |
| 300 | 4 | 0~75 | 5.5 | 0~3600 | 120/270 | 1.1/1.1 | 0~1440 | 1.5kw |
| 500 | 4 | 0~75 | 7.5 | 0~3600 | 200/450 | 1.5/1.5 | 0~1440 | 1.5kw |
| 1000 | 5.5 | 0~75 | 11 | 0~3600 | 400/900 | 2.2/2.2 | 0~1440 | 2.2kw |
| 2000 | 7.5 | 0~75 | 15 | 0~3600 | 800/1800 | 2.2/2.2 | 0~1440 | - |
| 3000 | 11 | 0~75 | 18.5 | 0~3600 | 1200/2700 | 3/3 | 0~1440 | - |
